A Samsung Washer With a 3C Error That Stopped After the Door Locked in Glen Ellyn

A Samsung Washer That Quit Right After Locking the Door in Glen Ellyn

A homeowner in Glen Ellyn called A+ Appliance Repair and Maintenance about a Samsung washer, model WF45K6500AW/A2, that was showing a 3C error. The pattern was specific: the normal cycle would run for less than a few minutes after the door locked, and then stop. Adding to the frustration, a control board had already been replaced, elsewhere, with no help at all. This one is a useful story, because it shows why identifying the right part is everything.

What a Samsung 3C error means

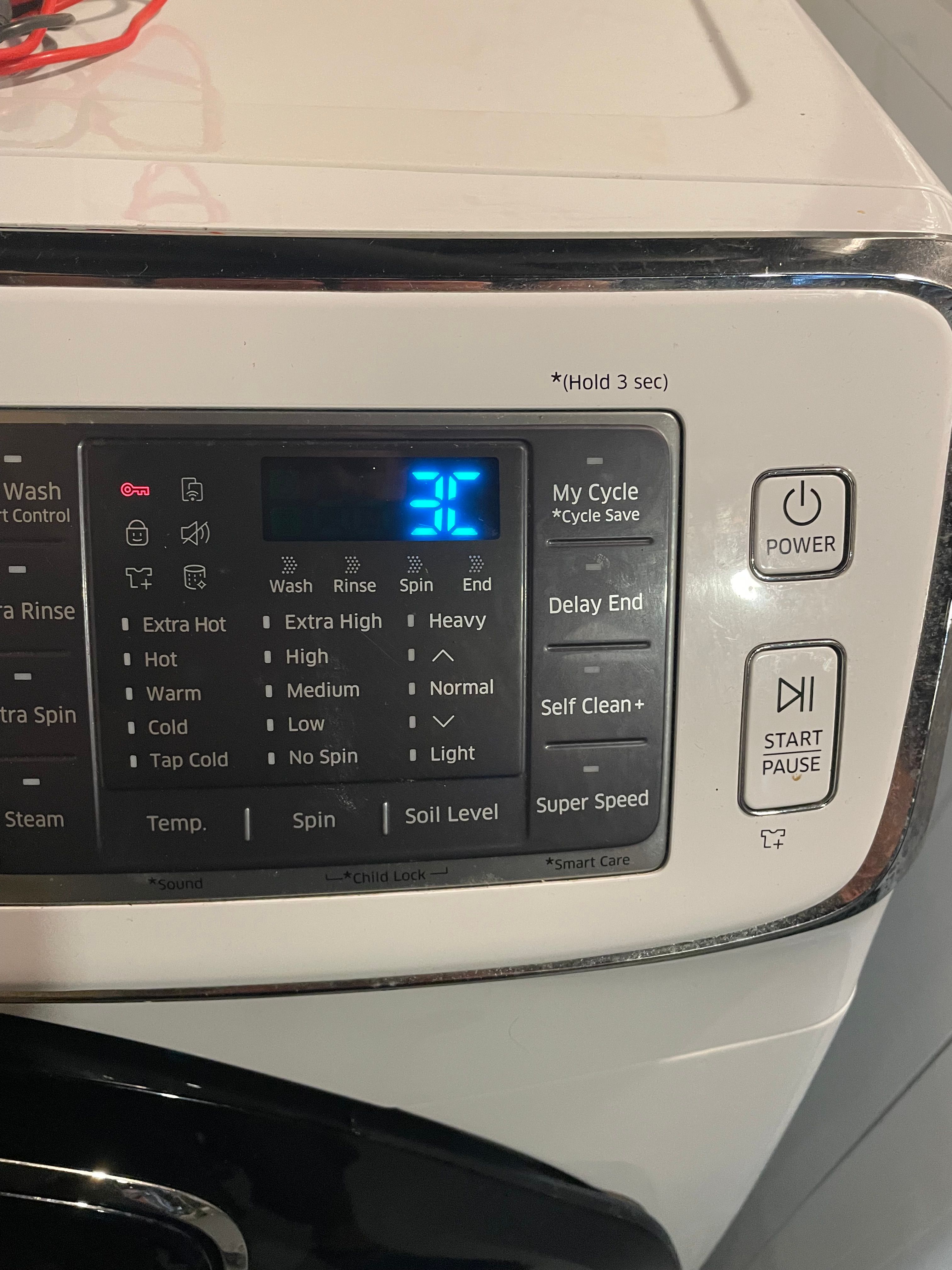

On a Samsung washer, the 3C error code points to a problem with the motor or the electronics that drive it. The washer locks the door, starts the cycle, and calls on the motor, and when the drive system cannot perform or cannot be properly controlled, the machine flags 3C and stops, which is exactly the behavior here, running only a short time after the door locks before halting. So the code itself is a strong clue, and it points at the motor and its drive electronics, not just any control problem.

The key part is that a Samsung washer has more than one board involved. There is the main control board, the general brain, and there is a separate inverter board, the power electronics that actually drive the motor. A 3C, motor-drive, error points specifically at the motor and inverter side. That is why the earlier replacement of the control board did not help: the main board was not the failed part. The problem was in the inverter board driving the motor, and swapping the wrong board could never fix a motor-drive fault.

The repair

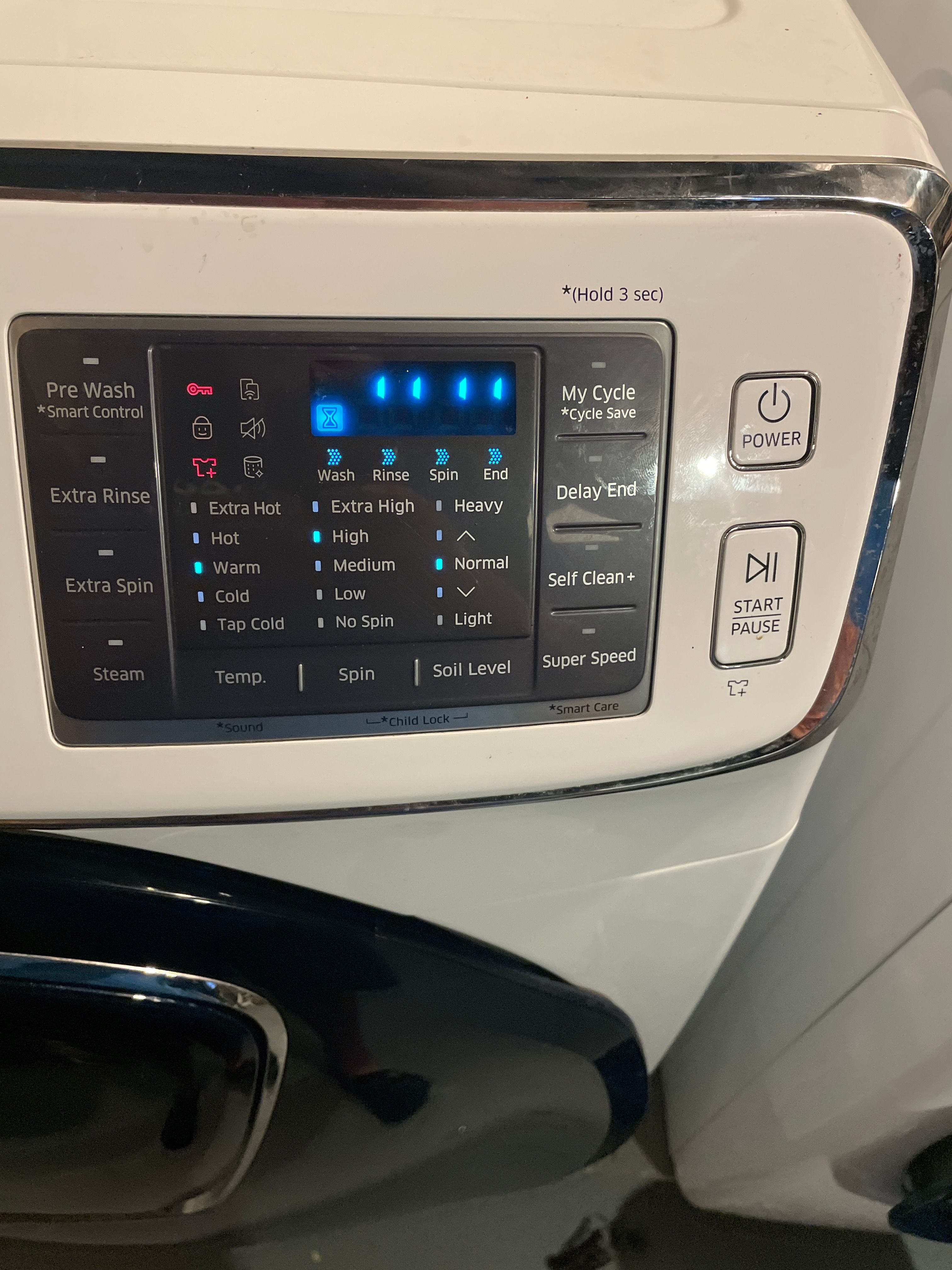

Our technician diagnosed the washer, read the symptoms and the 3C code correctly as a motor-drive problem, and replaced the inverter board, the component that actually drives the motor. With the correct part replaced, the 3C error cleared and the washer could run its cycle past the door lock instead of quitting after a couple of minutes. Confirming the machine runs a full normal cycle without throwing 3C is the measure of the repair, and that is what identifying and replacing the right board achieved.

Why the right diagnosis matters

This repair is a clear example of why a correct diagnosis is worth so much. A control board had already been replaced, presumably as a guess, and it did nothing because it was not the problem, which meant money spent with the washer still broken. Reading the 3C error properly as a motor-drive fault and testing to confirm the inverter board was the failure is what led to the actual fix. Throwing parts at an error code is expensive and often does not work; diagnosing the specific fault and replacing the right part is what fixes the machine. If a washer error has already had one part thrown at it without success, a proper diagnosis is exactly what is needed.

About A+ Appliance Repair and Maintenance

We service Samsung, LG, Whirlpool, Maytag, GE, and every other major washer brand throughout Glen Ellyn and the surrounding communities. Our technicians are certified, understand brand-specific error codes like Samsung's 3C, and diagnose the actual failed component rather than guessing.

We quote the price upfront before any work begins, we waive the service call fee when you move forward with the repair, and every completed repair is backed by our full repair warranty. If your Samsung washer is throwing a 3C error or stopping shortly after the door locks, we can diagnose it correctly and replace the right part.
