A Rheem Water Heater With No Hot Water Fixed With a Thermocouple in Chicago

A Rheem Water Heater That Would Not Stay Lit in Chicago

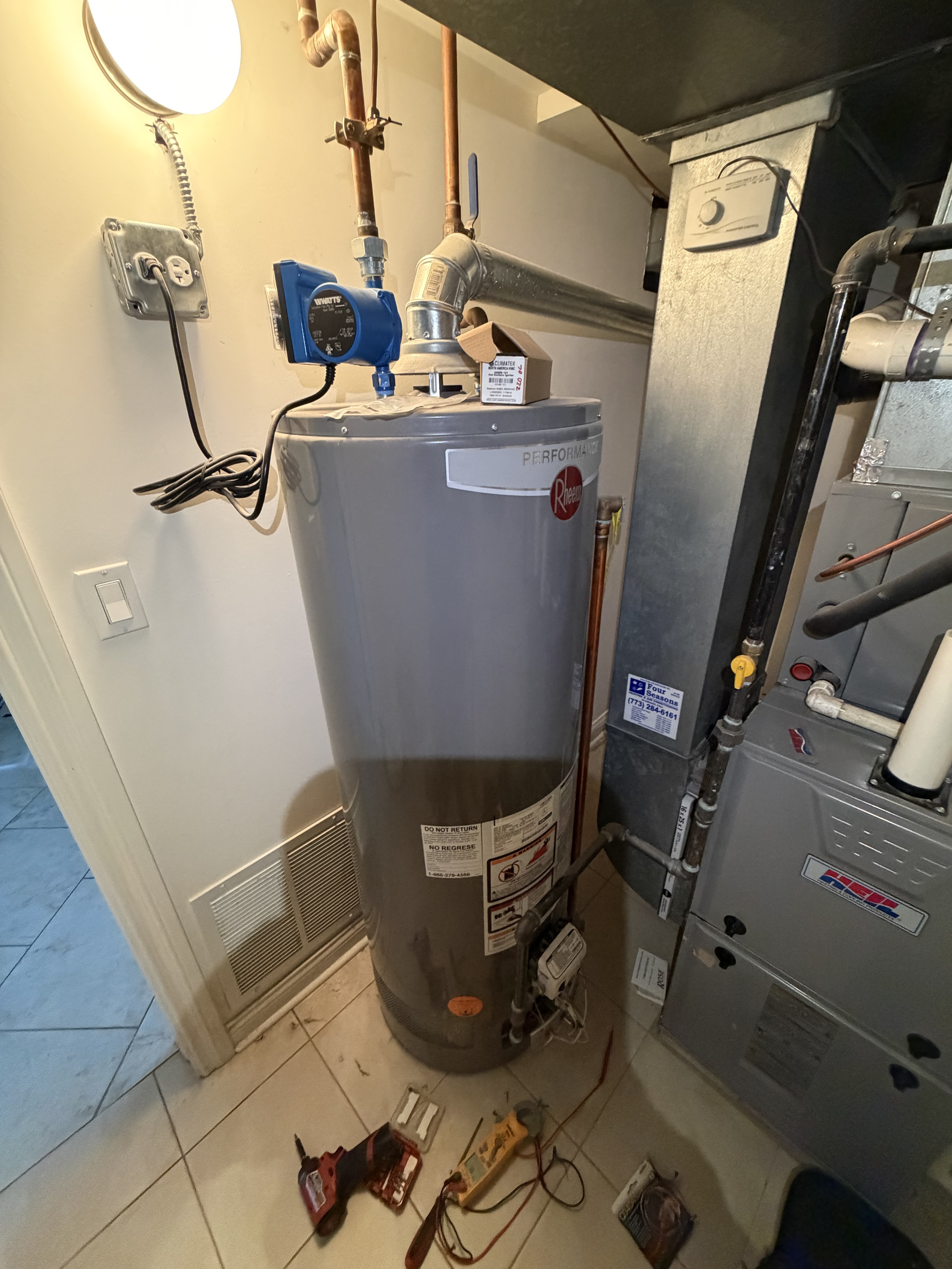

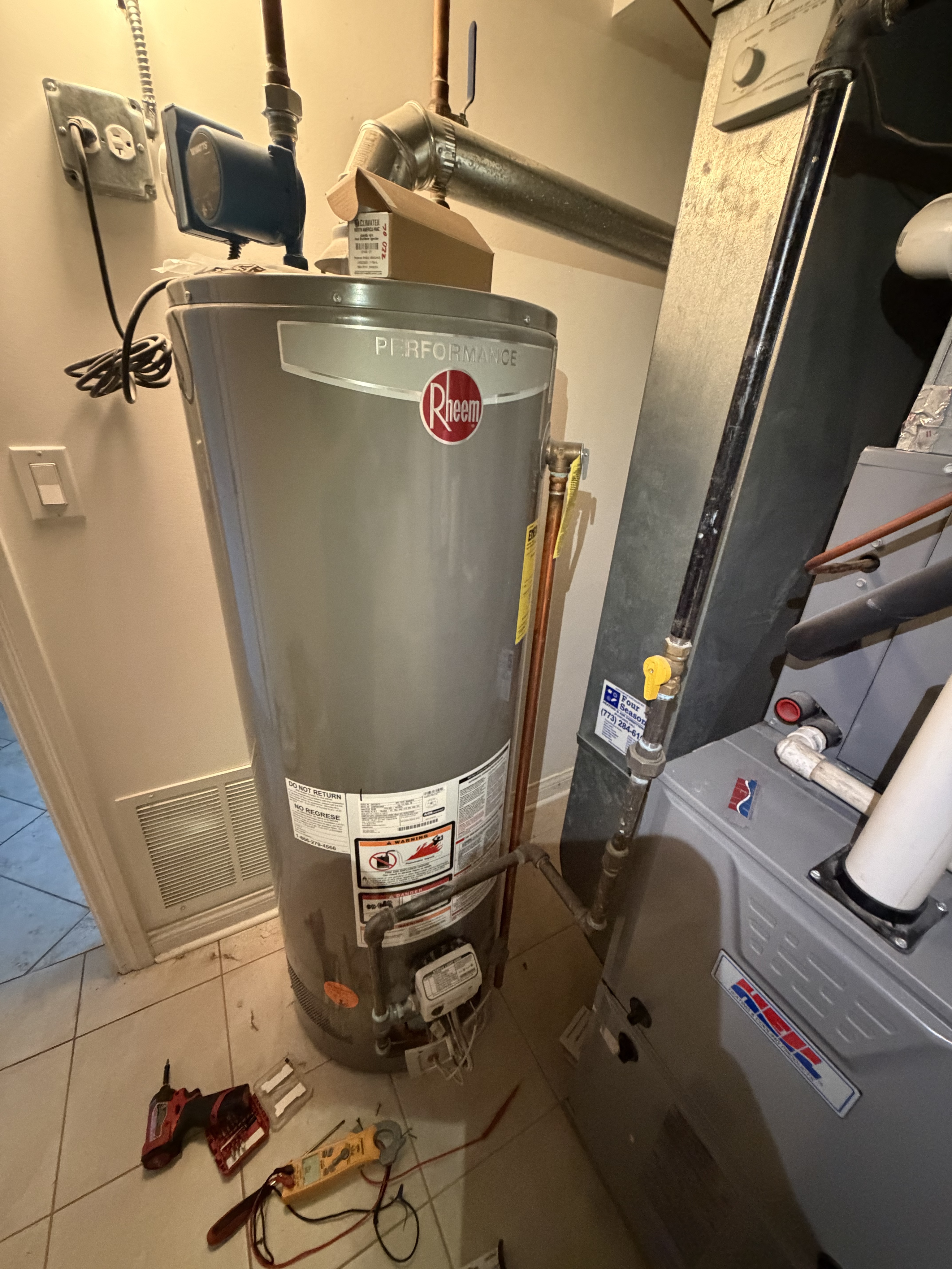

A homeowner in Chicago called A+ Appliance Repair and Maintenance about a gas Rheem water heater, model XG50T06EC380, that was producing no hot water. The pilot light and the igniter were not working, and the unit simply would not start. On a gas water heater, that pattern points to a specific, common part: the thermocouple.

How a gas water heater's safety works

A gas water heater has an important safety feature built around the pilot flame. The thermocouple is a small sensor that sits in the pilot flame, and its job is to detect that the pilot is actually lit. As long as the thermocouple senses the pilot flame, it signals the gas valve to stay open and keep gas flowing to the burner. If the pilot ever goes out, the thermocouple cools, no longer senses a flame, and tells the gas valve to shut off, which is the safety mechanism that prevents unburned gas from flowing when there is no flame to light it.

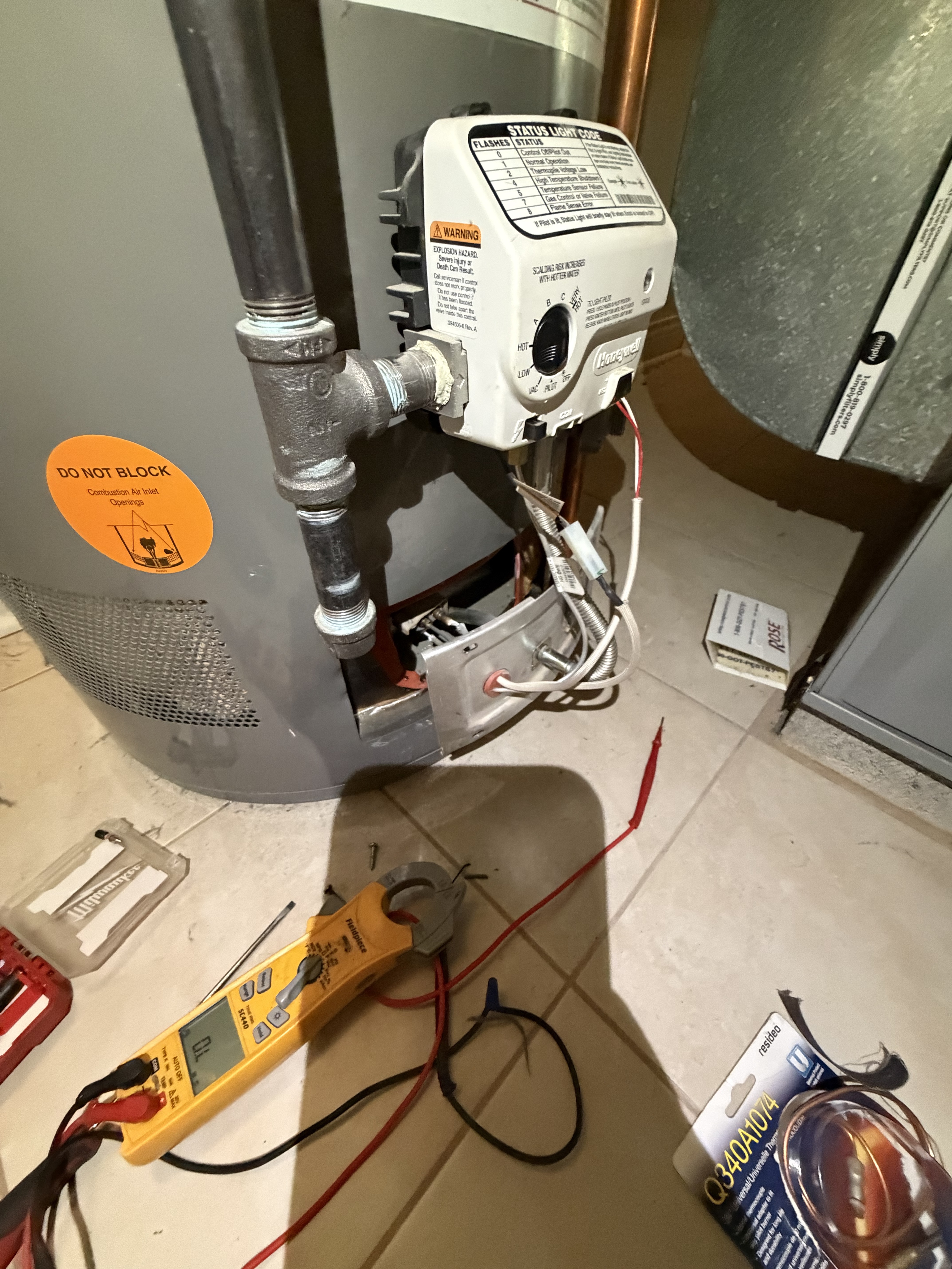

The catch is that when the thermocouple itself fails, it can no longer properly sense the pilot flame even when a flame is present. As far as the gas valve is concerned, there is no pilot, so it will not keep the pilot lit or open to the main burner. The result is exactly what this customer had: a water heater that will not start and produces no hot water, because the faulty thermocouple is preventing the gas valve from keeping the pilot flame lit. Diagnostic testing confirmed the thermocouple was faulty and was the reason the unit was not attempting to start.

The repair

Our technician replaced the thermocouple, restoring the water heater's ability to sense the pilot flame and keep it lit. With a working thermocouple correctly signaling the gas valve, the pilot stays lit, the burner can fire, and the water heater produces hot water again. Confirming the pilot stays lit and the unit heats water after the repair is the measure of the job. A thermocouple is a common, inexpensive part, and replacing it is a standard fix for a pilot that will not stay lit.

Why a certified technician matters

Because this is a gas appliance and involves the pilot and gas valve safety system, the work belongs with a certified technician who can handle the gas components safely and confirm the safety system functions correctly afterward. The thermocouple exists precisely as a safety device, so it is important that it be replaced properly and tested, which is exactly the kind of work a professional should do. As a general note, if you ever smell a strong gas odor, treat it seriously, ventilate, avoid flames, and contact your gas utility.
